GGU-ATTERBERG: "Test data input via editor" menu item

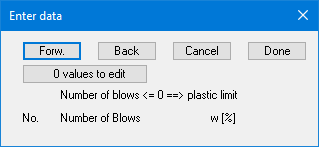

Beside the test data input described above, where the water content is determined by the program, test data can also be entered directly in an editor. The following dialog box opens after a confirmation prompt:

First select the "x values to edit" button and enter the number of values to be edited (e.g. "3"). Je According to the selected liquid limit determination method you can then enter the three value pairs (blow count or penetration depth and corresponding water content). Here too, a blow count or penetration depth of 0 designates a plastic limit. After selecting the "Done" button, the test results will be graphically displayed.

The dialog box shows a maximum of 8 value pairs simultaneously. If more than 8 value pairs have been entered, you can move through the table with the "Forw." and "Back" buttons. Existing data pairs can be deleted from the end of the list by reducing the number of entries, but a minimum of two data pairs must remain. The data pairs entered using this menu item are deleted following a confirmation prompt when you go to the menu item "Edit/Tests" for a second time.
