GGU-AXPILE: "Pile cross-section" menu item

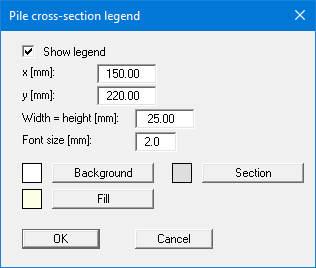

If the "Show legend" check box is activated, a drawing of the section is displayed in the screen graphics for the selected pile.

The position of the legend on the output sheet can be defined and edited by means of the variables "x" and "y"; "Width = Height" controls its size. The font size and the background, section and fill colouring can be edited to suit your requirements.

The fastest way to modify the position or size of the legend is to press the [F11] function key and then to either pull the legend to the new position or to move the sides of the legend to their new size with the left mouse button pressed.
