GGU-AXPILE: "Single pile" menu item

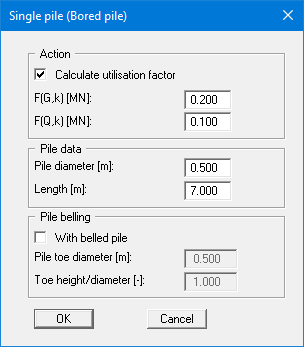

If analysing via the menu item "Edit/Piles (diameters)" or "Edit/Piles (lengths)" the final results are shown in a table after designing several piles (see menu item "Output preferences/Output table"). If you are interested in seeing a detailed breakdown of the analysis results select this menu item and specify the required dimensions, as shown in the following example for a single bored pile.

After designing the single pile (preferences in the dialog box above and subsequent analysis using "System/Analyse" menu item) a legend containing comprehensive results is displayed instead of the output table (see menu item "Output preferences/Results"). Naturally, it is then not possible to display the pile analysis diagram and the element is not shown on the output sheet.
