GGU-AXPILE: "System presentation" menu item

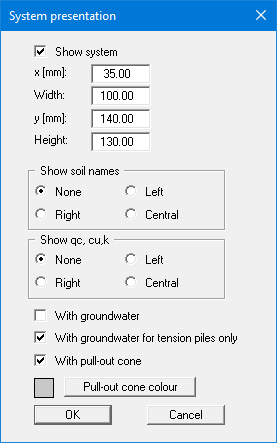

The system is graphically represented if you have clicked the "Show system" check box. You can alter the shape and appearance of the system presentation.

You can define and edit the position of the legend using the values "x" and "y". The size of the legend is controlled by the values for "Width" and "Height". In some legends, you can also adjust the font size of the label and/or specify a background colour.

The fastest way to modify the position or size of the legend is to press the [F11] function key and then to either pull the legend to the new position or to move the sides of the legend to their new size with the left mouse button pressed.

In addition, you specify preferences for displaying the soil names, base resistance and shear strength, as well as groundwater in the system visualisation. When using tension piles, the pull-out cone can also be visualised in any colour.
