GGU-BORELOG: "SEP abbreviations" menu item

The SEP 2 abbreviations defined by LBEG for the "Engineering geology" subset are included in the "SEPKURZ.TXT" file, which is included with the program. The existing SEP 2 abbreviations can be viewed, printed and, if necessary, modified in the menu item "Edit/SEP abbreviations" together with the long texts and short texts, and the code numbers for controlling soil column hatching. Modified SEP 2 abbreviations can also be saved under a different name.

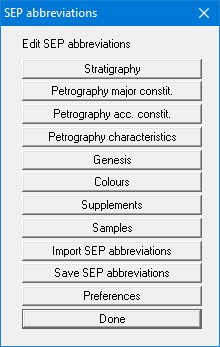

A dialog box opens containing the SEP 2 abbreviations divided into the respective fields.

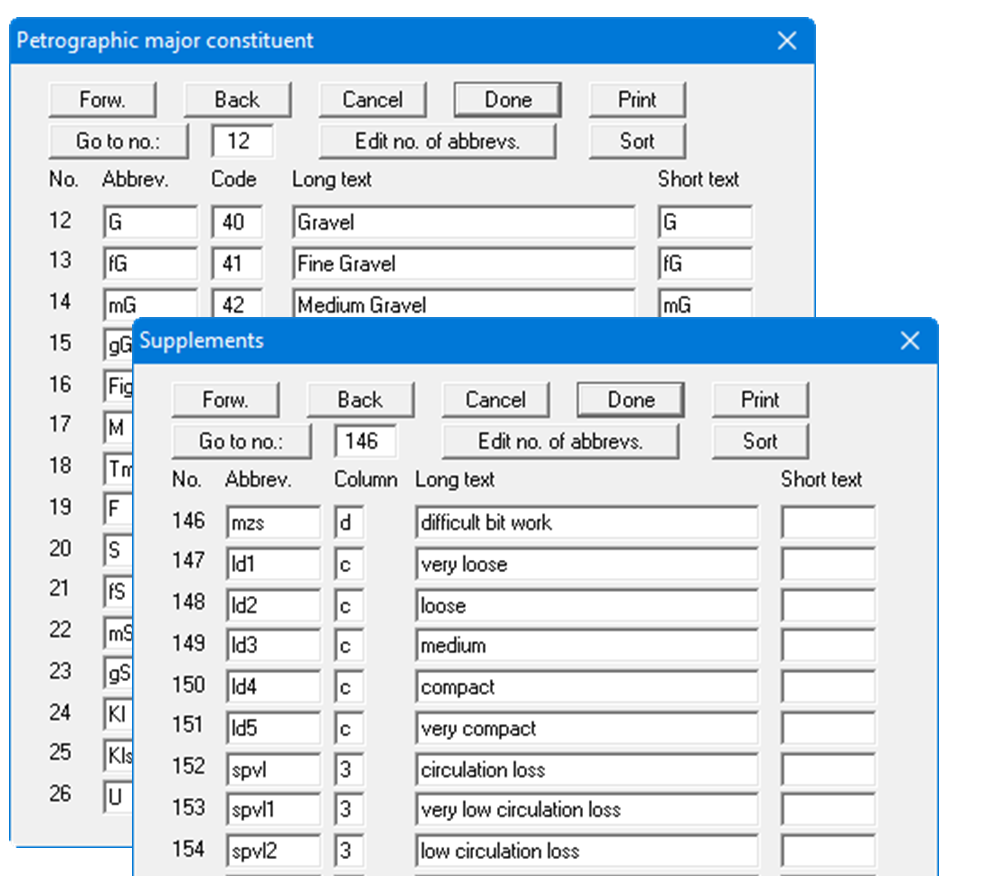

Click the individual field buttons to view the respective SEP 2 abbreviations and associated long texts, as shown in some of the displayed dialog boxes. For example, in the "Petrography" field a column with codes controlling visualisation of the DIN 4023 soil signatures in GGU-STRATIG can be seen. The column allocations for the DIN 4022 form can be viewed in the "Supplements" field.

If the SEP 2 file has been modified, it can be saved under a different name by pressing "Save SEP abbreviations". This file is then available for subsequent sessions under the "Load SEP abbreviations" entry. If "SEPKURZ.TXT" is used as the file name and the file is saved in the program folder, the file be automatically loaded the next time the program is started.

When making modifications please note that the same abbreviations file must be used in both programs if the data are transferred to GGU-STRATIG.
