GGU-CANTILEVER: "Anchors" menu item

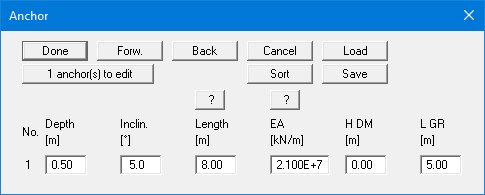

Anchors are defined in the dialog box of this menu item.

It is necessary to enter the following information:

• Depth [m] = position of anchor head

• Inclination [°] of anchor

• Length [m] of anchor = starting point of deep-seated stability

• EA [kN/m] = axial stiffness of the anchor steel

• H DM [m] = height of deadman (if present)
  This value is only necessary for analysis of deep-seated stability.

• L GR [m] = length of grouted section
  This value is of no importance for the analysis itself, but for the graphical visualisation. The length labelling of the anchor includes half the length of the grouted section.
