GGU-CANTILEVER: "Berms (active side)" menu item

You can define a maximum of ten berms on the active side.

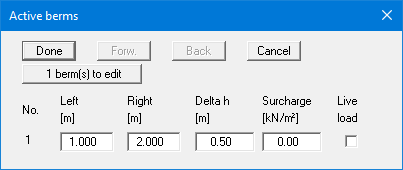

Enter the x-ordinates of the toe and head of the berm. With "delta h" you define the height of the berm; whereby negative values are also permitted. Finally, a "Surcharge" on the horizontal surface behind the head of the berm can be entered.

If more than one berm is present in the system, click "x berm(s) to edit" and enter the number of berms.

Berms may not overlap. The program checks that this condition is adhered to and warns of any errors.
