GGU-CANTILEVER: "Compaction earth pressure" menu item

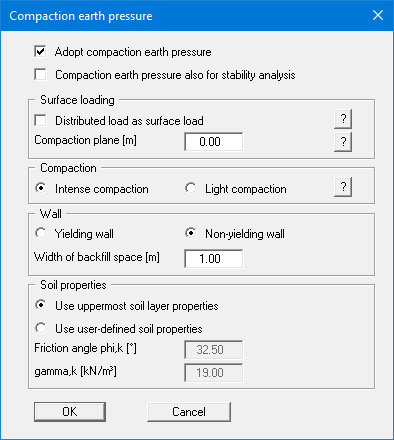

The compaction earth pressure to DIN 4085:2017 can be analysed using this menu item. The data required are described in the DIN and can be entered into the dialog box shown below. Pressing the "?" buttons, you will see further information.

Two files containing analyses taken from Geotechnische Nachweise nach EC 7 und DIN 1054 (Geotechnical analyses to EC7 and DIN 1054), 3rd edition 2012, by Martin Ziegler, can be found in the program's example folder. The analyses refer to pages 70 and 72 of the literature references.
