GGU-CANTILEVER: "Design defaults" menu item

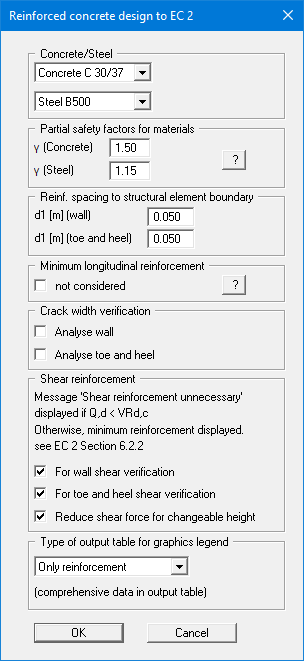

This menu item can be used for reinforced concrete design using different settings for a previously analysed system. The following dialog box opens:

The spacing of the reinforcement for the wall, toe and heel is defined, besides the concrete and steel qualities. By activating the appropriate check boxes, it is possible to perform crack width verification and define preferences for shear reinforcement output for the stem, toe and heel.

"Only reinforcement" is the default setting to stop the design legend from appearing too large in the system visualisation. However, all results are shown in the output table (see menu item "File/Print output table").
