GGU-CANTILEVER: "Passive earth pressure" menu item

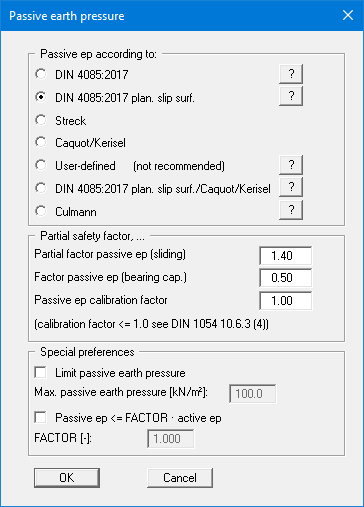

You can specify passive earth pressure preferences using this dialog box:


In the upper group box you specify the type of passive earth pressure calculation. If the "Culmann" check box is activated the passive earth pressure is calculated after Culmann using a slice method with straight slip surfaces.
