GGU-CANTILEVER: Step 7: Analyse and design the system

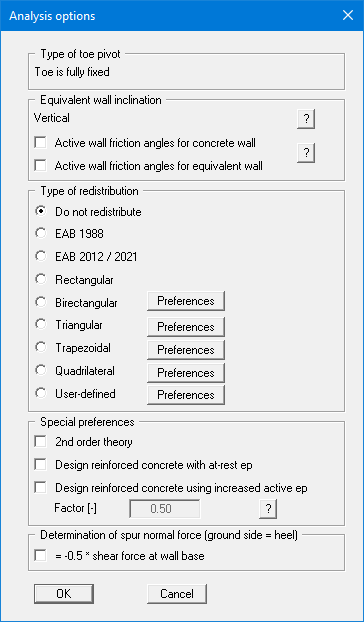

Now select the "Analyse" menu item from the "System" menu.

After clicking the "OK" button the analysis begins. The program first performs an intensive plausibility check of the data input. Once the analysis is complete, you will receive the following message for the system entered:

After confirming with "OK", the dialog box for reinforced concrete design compliant with EC 2 will be displayed. For the example, accept the proposed specifications in the dialog box. A description of the design can be found in the “System/Design defaults” menu item. Once design is complete, the results are presented in information boxes and then visualised graphically on the screen.
