GGU-CANTILEVER: "Verifications/Safety factors" menu item

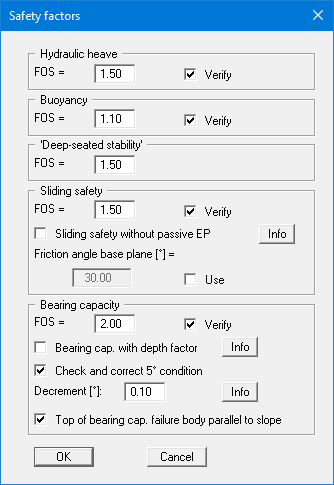

If you are analysing with global safety factors to DIN 1054 old, you can specify the verifications to be performed by the program by activating the corresponding check boxes in the dialog box shown below.

Then enter the safety factors for the individual verifications. The program's default values in the box are those required by the DIN 1054. If you do not want the program to perform the verifications, the corresponding check box must be deactivated. Pressing the two "Info" buttons, you will see further information.
