GGU-DOLPHIN: "p-y curves legend" menu item

If you work with the p-y method, a legend of the p-y curves can be displayed. Using this menu item you can alter the type of presentation or turn off the legend completely.

You can define and edit the position of the legend using the values "x" and "y". The size of the legend is controlled by the values for "Width" and "Height". In some legends, you can also adjust the font size of the label and/or specify a background colour.

The fastest way to modify the position or size of the legend is to press the [F11] function key and then to either pull the legend to the new position or to move the sides of the legend to their new size with the left mouse button pressed.

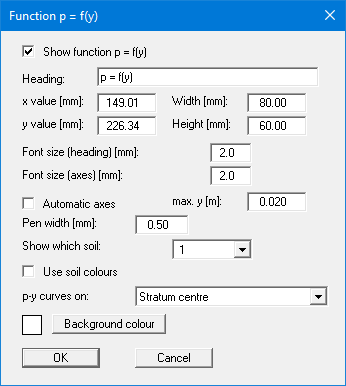

You can adapt the display of the function p = f(y) to meet your requirements based on the selected soil, alignment of the p-y curves or line colours.
