GGU-DOLPHIN: "Sections legend" menu item

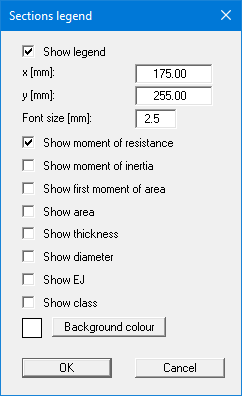

A legend containing the principal analysis parameters of the used single section or several sections is displayed on the screen. In the dialog box for this menu item, you can alter the legend's display format or completely hide it by deactivating the "Show legend" check box.

You can define and edit the position of the legend using the values "x" and "y". You can control the size of the legend via the "Font size". You can also define a background colour in some legends.

The fastest way to modify the position or size of the legend is to press the [F11] function key and then to either pull the legend to the new position or to move the sides of the legend to their new size with the left mouse button pressed.

Additional parameters can be displayed by activating the different check boxes.
