GGU-DOLPHIN: "Sum V" menu item

You will see all information about the verification of sum V in a message box. This dialog box always opens immediately following the analysis and design of specific load cases:

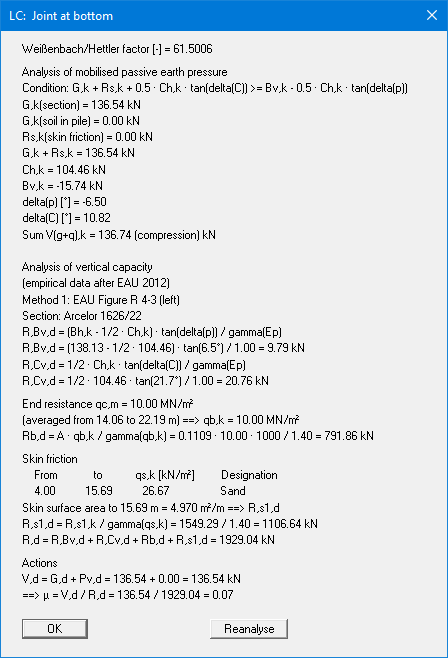

If the verifications have not yet been activated, activate them in the "Editor 1/Sum V analysis" dialog box and have the system reanalysed. After selecting this menu item, you will see the following result box, for example:

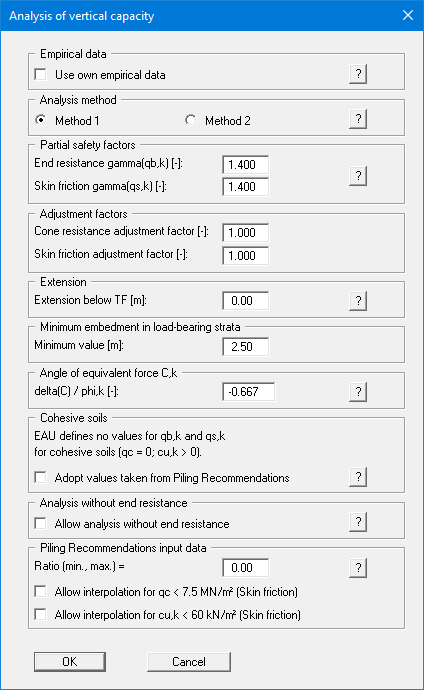

By clicking the "Reanalyse" button, you can edit the settings in the following dialog box and recalculate the sum V verifications:

Once the modifications are confirmed by pressing "OK" the data is displayed in a message box. After closing the box, the results for analysis of Sum V are displayed in the General legend, if the appropriate check box is activated (see menu item “Graphics preferences/General legend”).
