GGU-DRAWDOWN: "Input data legend" menu item

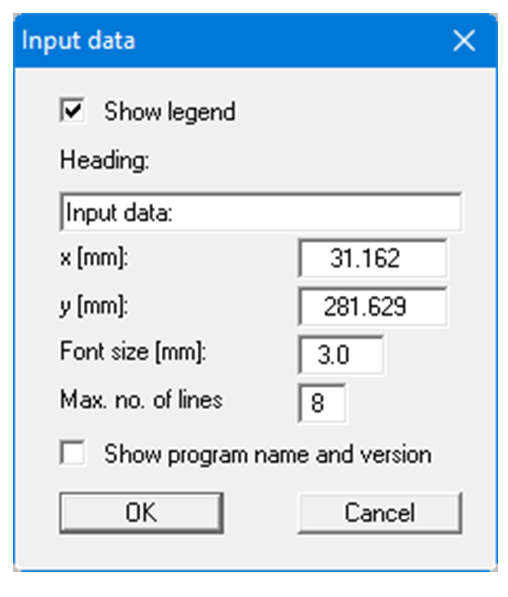

If you click the "Show legend" check box, a legend with input data will be displayed. You can alter the position and appearance of the legend.


A text can be specified as legend header. You can define and edit the position of the legend using the values "x" and "y". You control the size of the legend using "Font size" and "Max. no. of lines"; where necessary, several columns are used. The fastest way to modify the position of the legend is to press the [F11] function key and then to pull the legend to the new position with the left mouse button pressed.

You can display the program name and version, if the corresponding check box is activated. Any project identification entered will also be shown in the input data legend.
