GGU-ELASTIC: "Beams" menu item

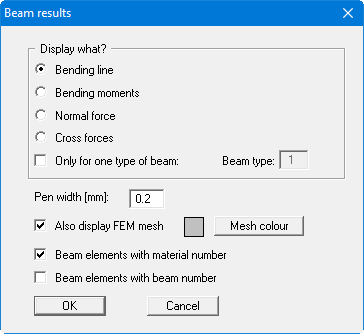

If beams are present in the system, you can have their state variables graphically presented. Select the required state variable in the following dialog box:

In the lower group box, you can define the familiar visualisation settings, with the addition here of the check box for visualisation of the "Beam elements with material number".

After confirming with "OK", you will see further dialog boxes for all visualisations, in which you can define the length of the maximum state variable and the line labelling.
