GGU-FOOTING: "Fill colours" menu item

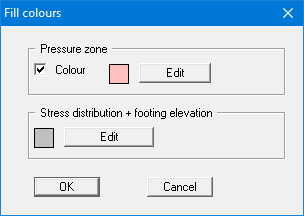

When analysing in the "Pad footing" mode it is possible to add a coloured backdrop for the pressure zone in the plan view. Activate the "Colour" check box in the "Pressure zone" group box and selected the required colour using the "Edit" button. The colour of the footing can also be edited for the system visualisation and for the stress distribution.

When analysing in the "Multiple footings" mode the allowable area in the footing analysis diagram can be colour-filled using this menu item. A "Diagram colour" group box is shown in the dialog box in place of the "Pressure zone" group box.
