GGU-FOOTING: "Soils" menu item

Enter the number of soil layers and the corresponding soil properties here.

An explanation of the dialog box can be found in the “Multiple footings” worked example in Section “Define soils (Example 1)”).

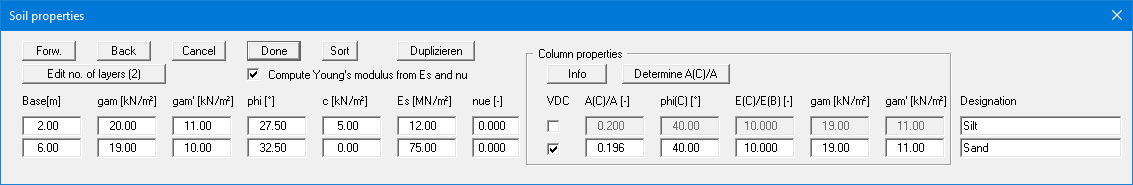

If you are working with vibrodisplacement compaction and have activated the "Use" check box in the menu item "File/New" or "Edit/Analysis options", the following dialog box appears:

By activating the "VDC" check box you define the soil layer improved by vibrodisplacement compaction. Enter the corresponding parameters for this layer (see "Info" button). The area ratio A(C)/A can be determined by the program for different rasters via the "Determine A(C)/A" button and transferred to the table.

The ratio (EC)/E(B) should not be greater than 15 to max. 20.
