GGU-LATPILE: "Bounded surcharges" menu item

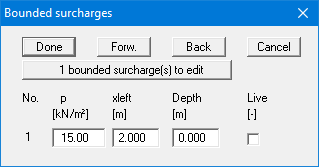

Bounded surcharges are defined in the following dialog box. You are first queried whether the surcharges are entered to be on the active or the passive side. The following dialog box opens for active side input:

Using "x bounded surcharge(s) to edit" you can determine the number of bounded surcharges. You can then enter the size of the surcharges, the ordinates and the depth in metres from the top of the pile or as absolute heights.

Input of bounded surcharges on the passive side is analogous, but without the "Live" check box.
