GGU-LIME: "Tests" menu item

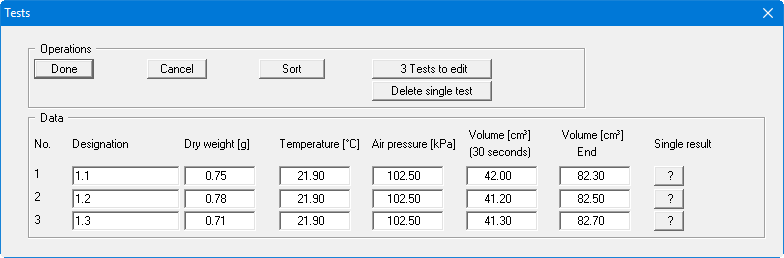

This represents the program's central menu item. All the basic data involved in the determination of lime content is entered here. After clicking this menu item or double-clicking in the result table the following dialog box opens (example):

This example contains three single tests, each represented by an input row. The automatic numbering of the tests defines the sequence in the table. You define the number of input rows needed using the "x Tests to edit" button.

Enter the obligatory data in the input boxes shown in the dialog box to determine the lime content. Remember that DIN 18129 uses [kPa] as the unit of air pressure.

Using the "?" button behind every input row the input data and test results corresponding to the single test are displayed in a message box. The data are subsequently displayed in the results table on the output sheet.

After clicking the "Delete single test" button, you can select one of the current single tests to be deleted in an option box.

Using "Done" or "Cancel" you return to the menu list, having accepted the changes or not, respectively.

Further input boxes for entering additional information (e.g. soil type) can be defined using the menu item "Output preferences/Table texts + allocations" . If you have used this option you will no longer see the test input dialog box shown above. Each individual test is opened separately via a button with the automatically allocated test number:

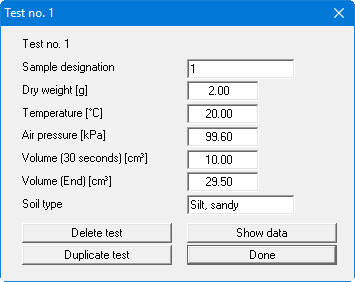

For example, you will see the following dialog box for the first test:

The additional input boxes are shown at the bottom of the dialog box; for soil type input in this example.
