GGU-RETAIN: "Common systems" meu item

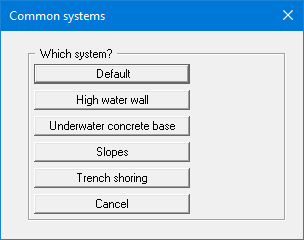

You can quickly design a system for the shoring wall systems shown in the dialog box. Without having to work through the various menu items one after the other, you can enter the essential elements such as excavation geometry, groundwater, anchors, soil properties etc. in just one dialog box.

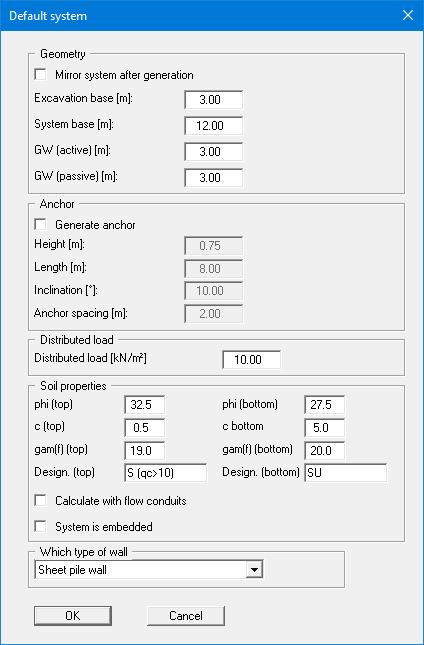

For example, if you want to calculate a default system, select the corresponding button and the following dialog box will appear:

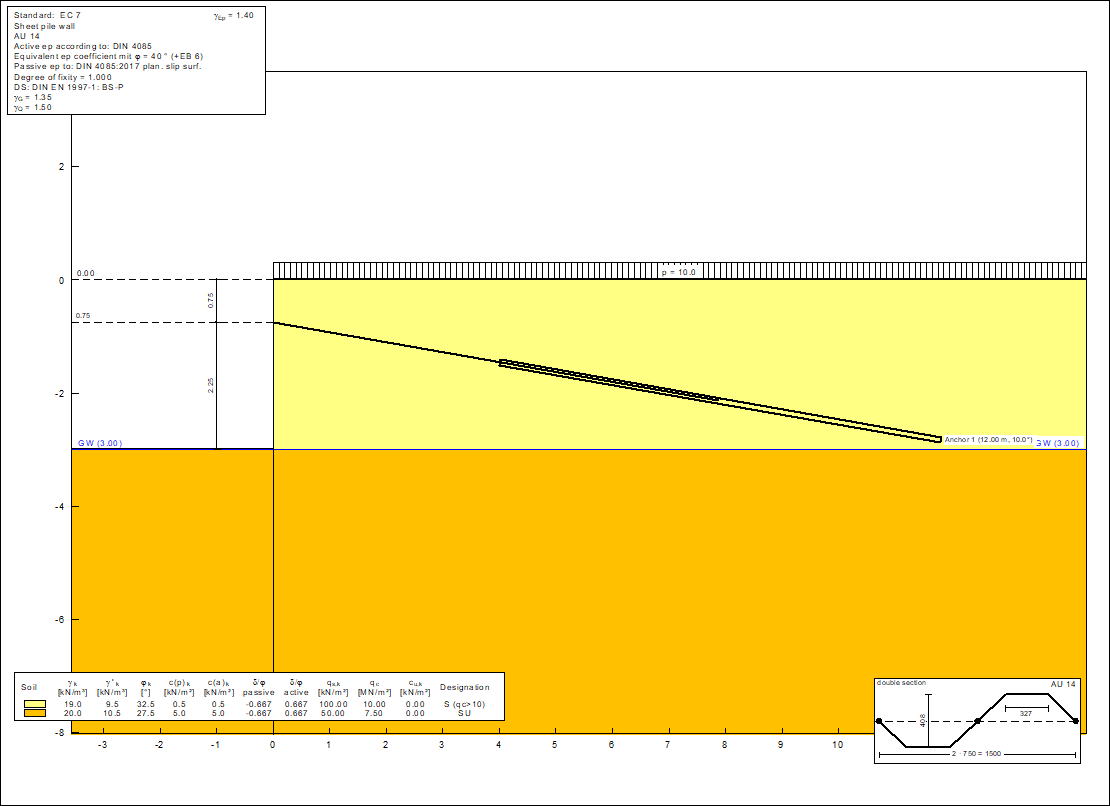

After confirming the entries, the following system is displayed.

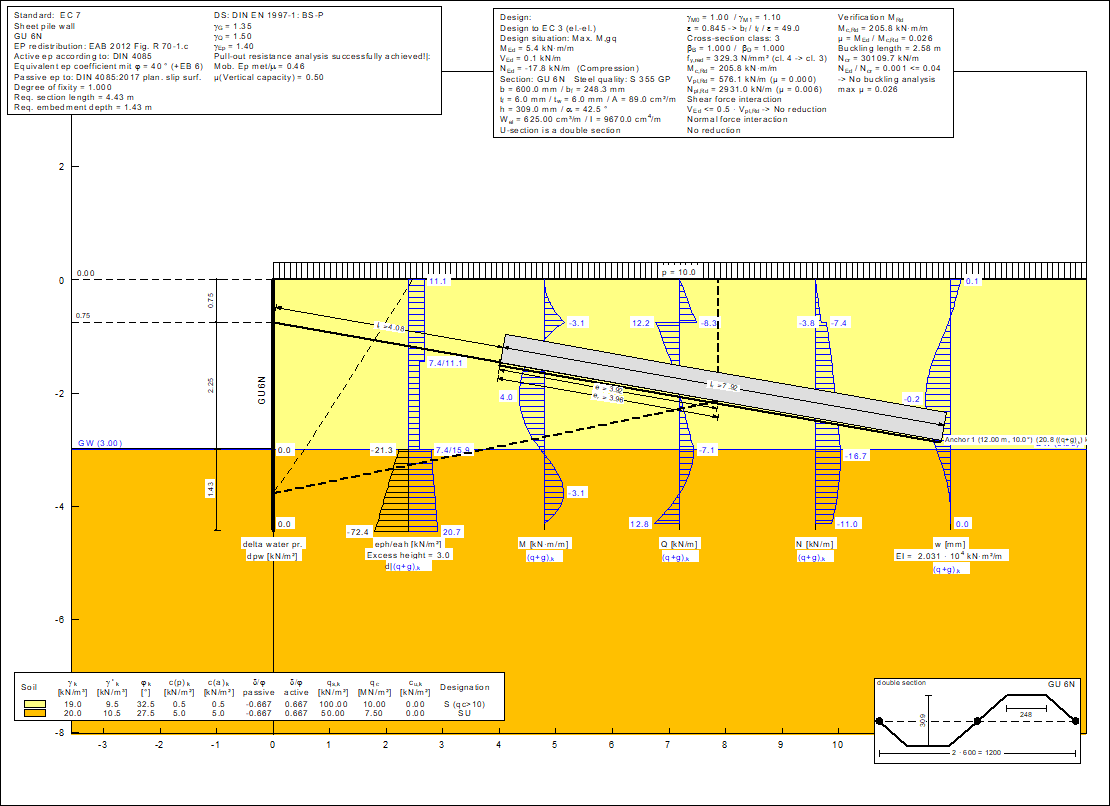

You can now start your calculation as usual via " System/Analyse" or [F5] and receive the following result, for example:
