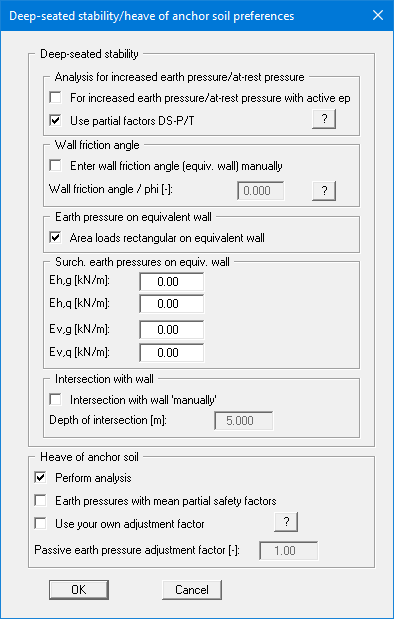

GGU-RETAIN: "Deep-seated stability/Heave of anchor soil" menu item

Use this menu item to define preferences for analysis of deep-seated stability.

Verification of heave of anchor soil can be activated in the lower group box of the dialog box. If a value unequal to '0' is entered for the height of the dead man when entering the anchors and this check box is activated, verification is performed like the method described in Section 7.3.4 of the Piling Handbook 1977.
