GGU-UPLIFT: Utilisation factor (buoyancy) using partial safety factors

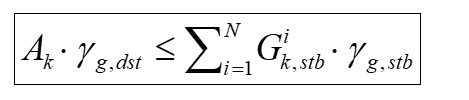

Using the partial safety factor concept the following must be verified:

  • Ak = the characteristic hydrostatic buoyant force acting on the lower surface of the
    complete structure, the soil layer in question or the excavation structure

  • γg,dst = partial factor for destabilising permanent actions in the
    UPL (EC 7) limit state

  • Gk,stb = lower characteristic value of stabilising permanent actions

  • γg,stb = partial factor for stabilising permanent actions in the
    UPL (EC 7) limit state

  • layer 1 (i = 1) is the uppermost layer

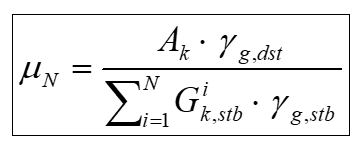

The so-called utilisation factor µ can also be calculated from this relationship.


µN = utilisation factor of layer N

Utilisation factors ≤ 1.0 mean that sufficient safety is given.
