GGU-ENSLIN: "Tests" menu item

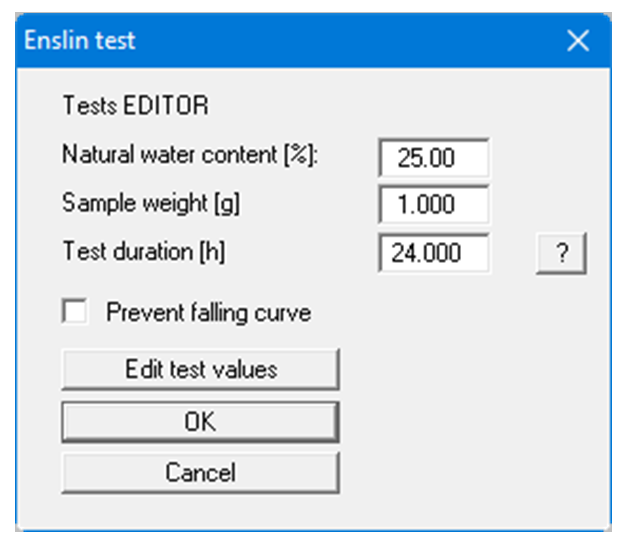

This represents the program's central menu item. In this example, the following dialog box opens after clicking this menu item:

The natural water content of the sample and the sample weight can be entered into the first two input boxes. These are displayed on the form. In rare cases it is possible that, despite careful text execution, a falling curve results for the water absorption capacity, although this is theoretically not possible. If you want to suppress graphical representation of a falling curve, activate the "Prevent falling curve" check box. All entered data will be saved when leaving the dialog box using the "OK" button.

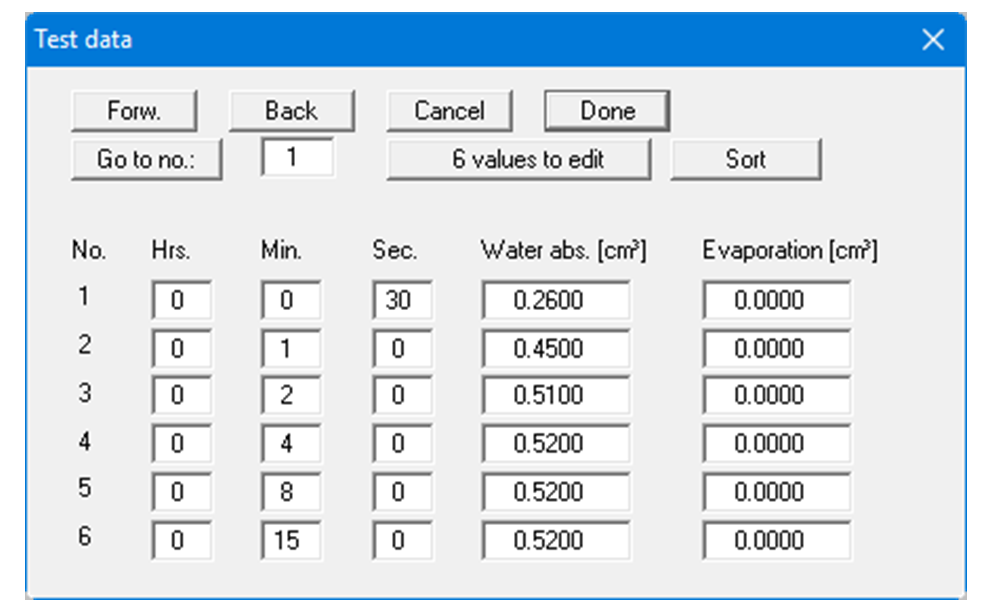

Using the "Edit test data" button you can enter a new test or edit existing test data. The following dialog box opens:

The values for reading time, water absorption and evaporation [cm³] required for calculation of the water absorption capacity are entered in this dialog box.

• "x values to edit"
  In the example used here 6 value pairs have already been entered. By pressing the button you arrive at a further dialog box for editing the number of value pairs. If no values have been entered (new test), the box will contain a "0". Value pairs are added by increasing the number, and existing value pairs deleted by decreasing the number.

• "Forw." and "Back"
  A maximum of 6 individual values can be represented. If you have more than six value pairs you can navigate through the list using the "Forw." And "Back" buttons.

• "Go to no."
  You can move directly to a value pair number by entering the corresponding number and clicking "Go to no.".

• “Cancel"
  By clicking this button you return to the previous dialog box. All entered data is rejected.

• "Done"
  You return to the previous dialog box. All entered data is accepted.
