GGU-3D-SSFLOW: Button "Irregular"

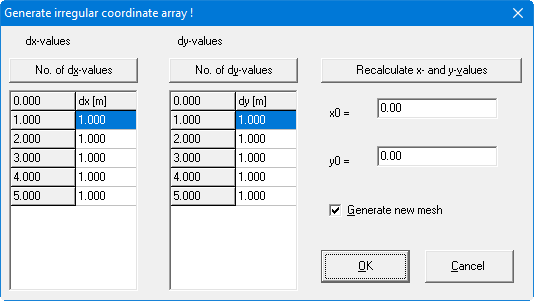

In contrast to the regular array procedure, where the generated nodes are evenly spaced within the generated rows, the spacing can be varied using the irregular array. This can be done in the following dialog box.

The array numbers can be defined using the "No. of dx values" and "No. of dy values" buttons. Enter the array spacing in "dx" and "dy". If you press the "Recalculate x and y values" button the first column to the left of "dx" and "dy" are recalculated. These are absolute values for the array. The array origin is entered in "x0" and "y0".

If the "Generate new mesh" check box is activated, all existing nodes are deleted and then the user-defined FEM nodes in the dialog box are generated with the appropriate FEM mesh. If you want to add further nodes, deactivate the Generate new mesh" check box.
