GGU-COMPACT: "Define extra tests" menu item

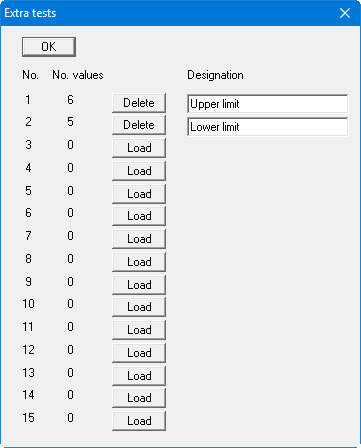

In order to use further tests in the visualisation, previously defined tests can be loaded using this menu item. The following dialog box appears:

Select the required Proctor compaction test after clicking the "Load" button. The "Designation" box then appears for the selected test; enter a fitting test description. In the example above 2 Proctor curves have been loaded, representing the upper and lower boundaries of the permissible region. The designations entered are later adopted as curve descriptions in the extra tests legend (see Section 5.4.16). If a file with a project identification is loaded as an extra test (see Section 5.5.2), this is automatically entered into the "Designation" box.

The number of respective individual tests in the loaded extra tests is displayed in the dialog box. Once a file has been loaded, the "Load" button changes to a "Delete" button. This allows extra tests that are no longer needed to be deleted again.
