GGU-DIRECTSHEAR: "Texts" menu item

The default labelling of some output sheet elements can be edited in this menu item's dialog box. Among other things, the name of the output sheet can be specified here. An option box opens in which the various fields can be selected for editing using the correspondingly labelled buttons.

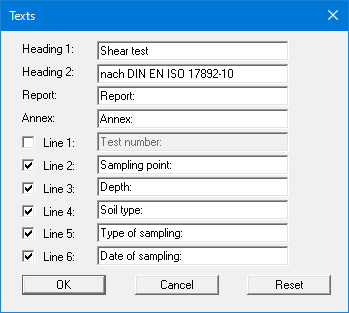

  • After clicking "Output sheet" the following dialog box opens:


Your input in lines 1 to 6 of the above dialog box, as well as the input for "Report:" and "Annex:" also represent the designations for the input boxes in the "Edit/General" menu item dialog box. If rows are deactivated in the above dialog box, the corresponding input boxes in the "Edit/General" menu item dialog box are also deactivated (see Section 5.2.4).

​Use "Reset" to restore the default labelling settings. If you have retroactively changed the language you will see the internal program translations in the input boxes.

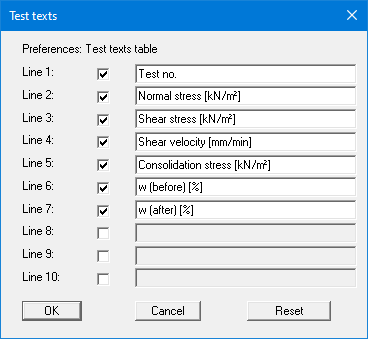

  • If the "Test texts" button is clicked in the above option box the following dialog box opens, allowing editing of the test data input box labelling and the display of the test data table on the output sheet:


The appropriate parameters are presented in the above dialog box; depending on whether a shear test or a triaxial was selected in "Edit/Test type" (see Section 5.2.1). If any of the rows are deactivated in the dialog box the input boxes in the "Tests" dialog box are also deactivated (see Section 5.2.2.2). These rows are completely hidden in the output sheet table containing the test data.

​Use "Reset" to restore the default labelling settings. If you have retroactively changed the language you will see the internal program translations in the input boxes.
