GGU-DRAWDOWN: Example system

As, from personal experience, the reading of manuals is a chore, there will now follow a short description of the main program functions, using an example. After studying this section you will be in a position to calculate a multiple well installation. You can take the finer details of the program from the further sections.

A excavation with the following dimensions is to be calculated:

• Length = 71 m

• Width = 33.5 m

• Distance of wells from the excavation edge = 2.0 m

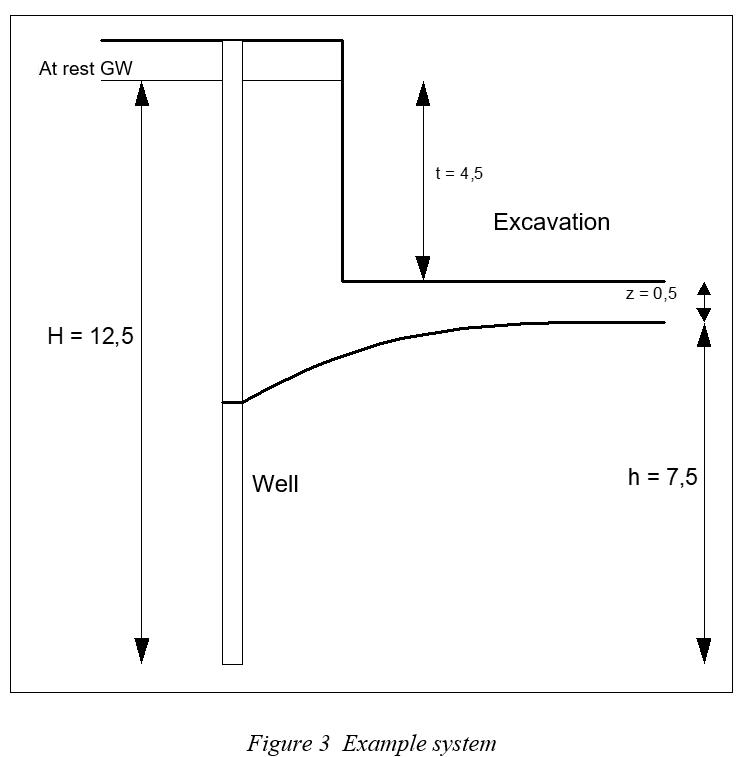

The wells are to have a radius of 0.3 m. The k-value is 5 · 10^-4 m/s. Further system values can be taken from the figure.
