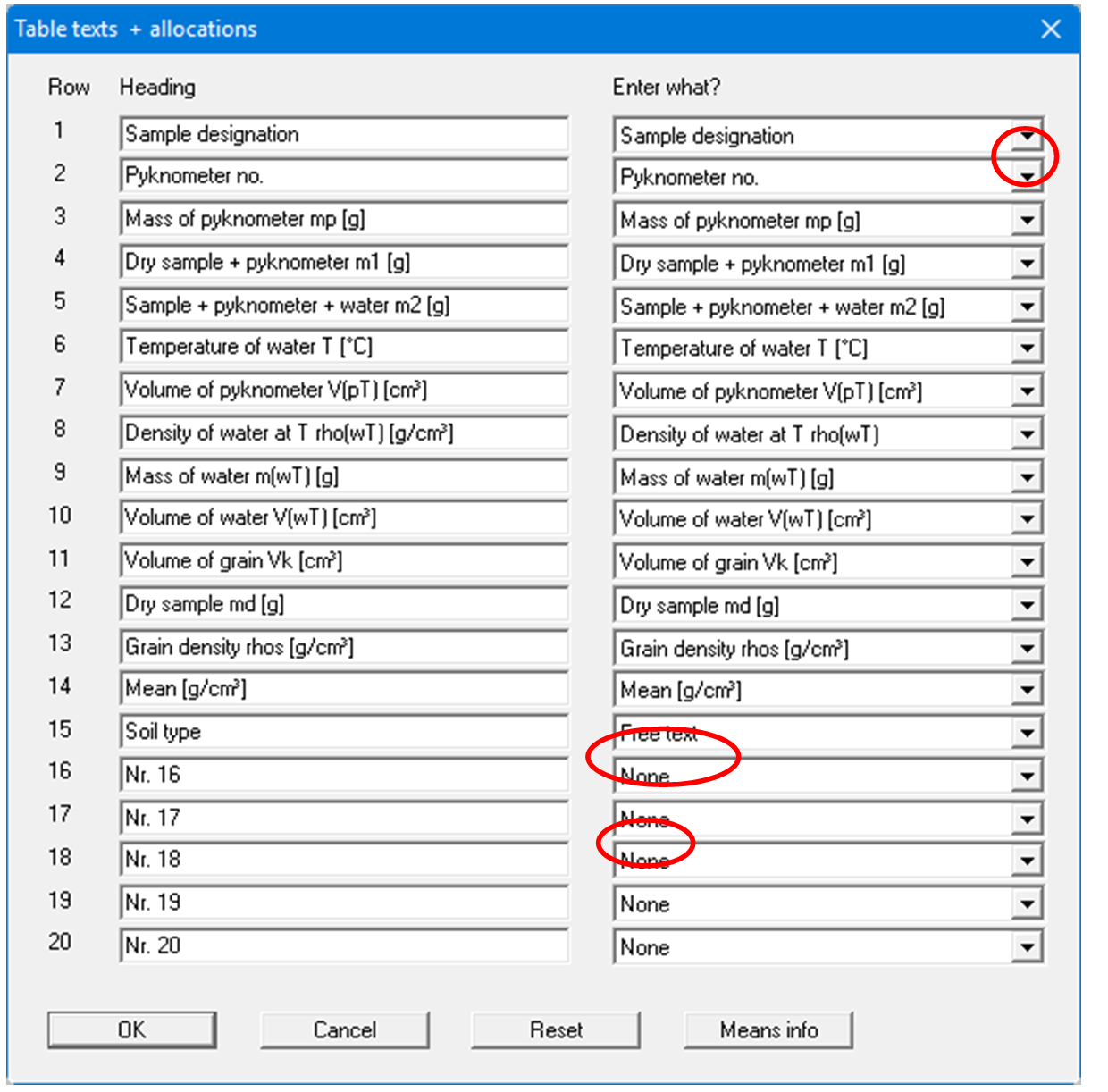

GGU-GRAIN-DENSITY: "Table texts + allocations" menu item

The labelling and arrangement of the table elements can be edited using this menu item.

Enter texts by hand in the "Heading" boxes, which are later used as a label. After clicking the arrows in the "Enter what?" column the data or text in the drop-down list entered by hand or determined by the program can be allocated to the to the rows of the results table.

Rows with a "None" allocation are not displayed. If information that is not found in the table default texts needs to be added to the results table a "Free text" can be used. This row then appears in the test data input box with the user-defined labelling.

The "Reset" button resets the labelling and allocations of the results table to the defaults. A dialog box opens, in which the texts can be supplemented by the corresponding relationships by activating the "With relationships" check box. If you have retroactively changed the language to English you will see the internal program translations.The "Means info" button opens a message box with a description of the "Mean value" row.
