GGU-LOI: "Table texts + allocations" menu item

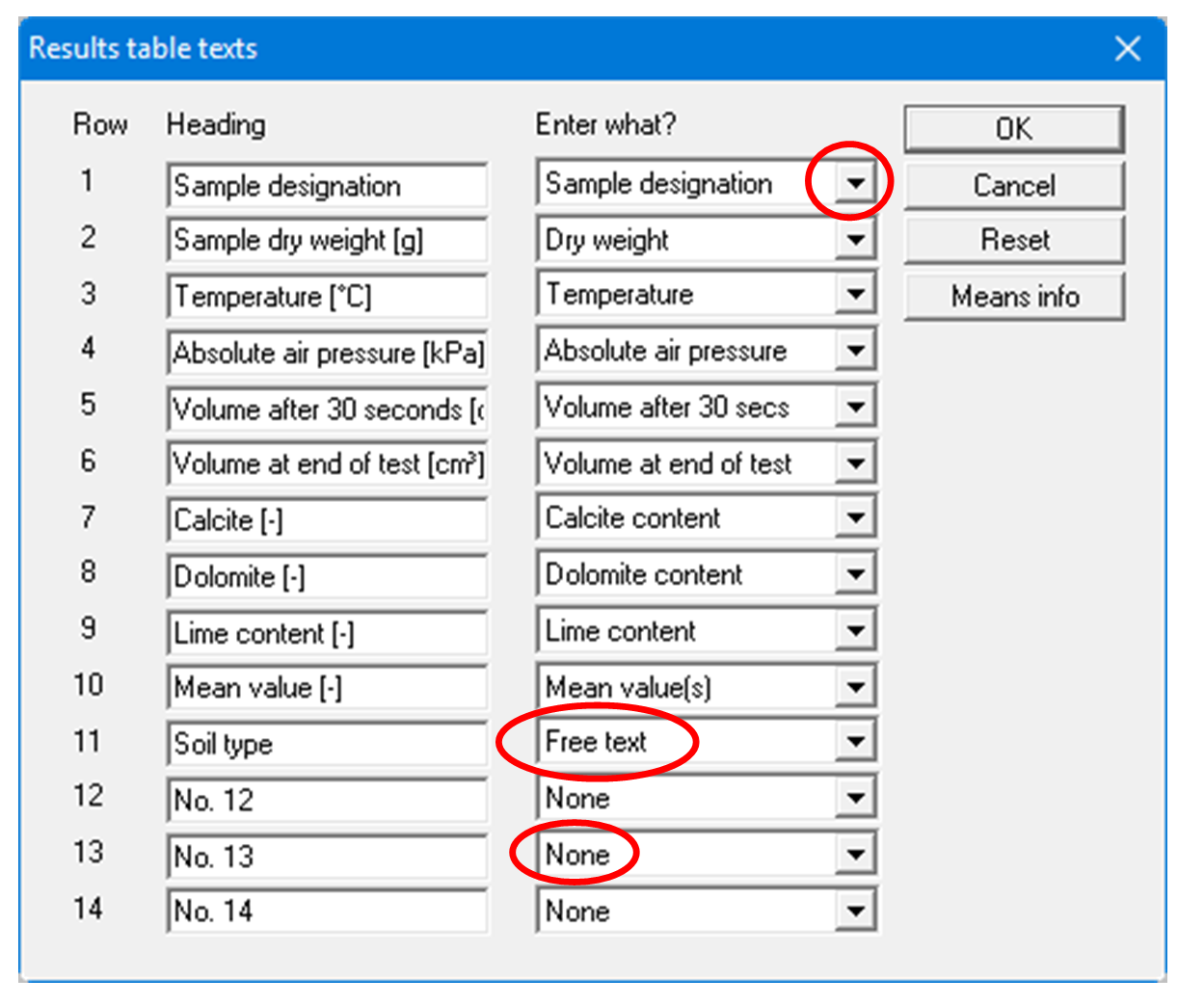

A dialog box opens for specifying the parameters and properties to be displayed in the result table. It is possible to display up to a maximum of 12 lines. The sequence corresponds to the numbering in the following dialog box:

Enter texts by hand in the "Heading" boxes, which are later used as a label. After clicking the arrows in the "Enter what?" column the data or text in the drop-down list entered by hand or determined by the program can be allocated to the to the rows of the results table. Lines with a "None" allocation are not displayed.

If information, which is not found in the table default texts, needs to be added to the results table a "Free text" can be used. This row then appears in the test data input box with the user-defined labelling.

The "Reset" button resets the labelling and allocations of the results table to the defaults. If you have retroactively changed the language you will get the internal program translations.

Depending on whether LOI visualisation is selected in per cent or not in the "Edit/Preferences" menu item, rows 7 to 8 are labelled in [%] or dimensionless. Attention: You must adapt the dimension information in the labelling (left column) by hand! The "Means info" button opens a message box with a description of the "Mean value" row.
