GGU-PLATELOAD: "New" menu item

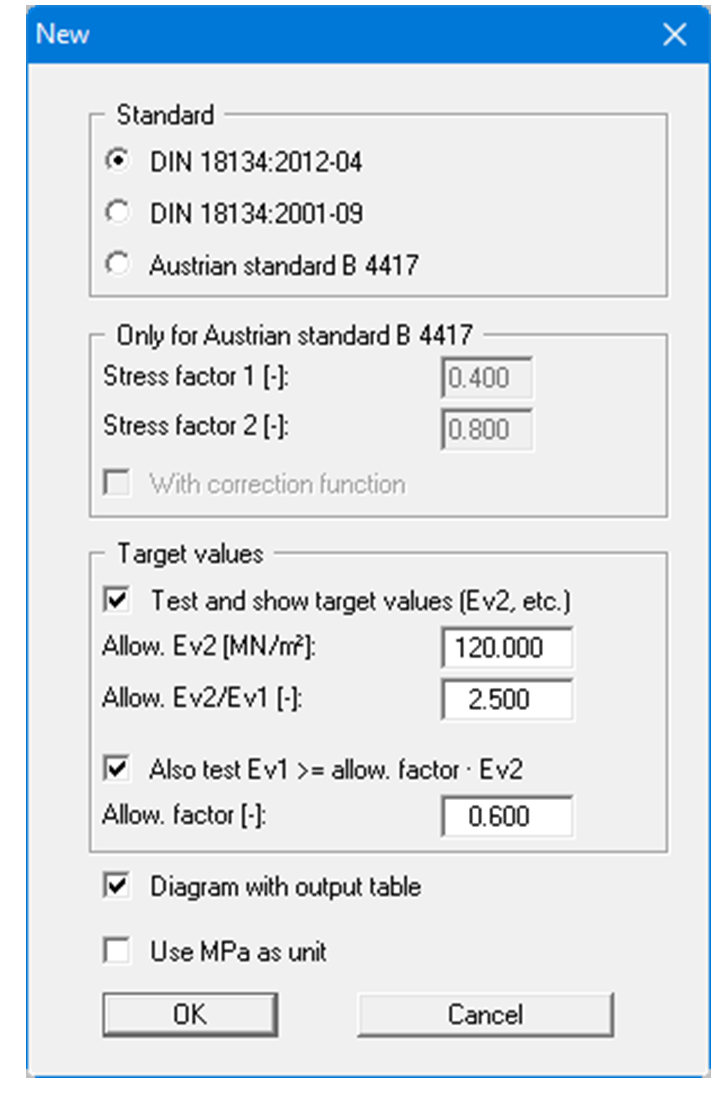

You use this menu item to start a new plate loading test. A dialog box opens, where you can decide whether you want to use the German DIN 18134 (old version of 2001 or current version dated April of 2012) or the Austrian Standard B 4417.
You can define the target values for Ev2 and the ratio of Ev2/Ev1, that will be checked and entered by the program. In addition, a target value factor can be given, with which Ev1 can be correlated.
If the "Diagram with output table" check box is activated, a short output table is displayed together with the load-settlement curve evaluation. Furthermore you can use the unit "MPa" instead of "MN/m²".All current measured data will be deleted. You can then enter new data points and the corresponding data.
