GGU-PUMPTEST: Evaluation using "Auto fit"

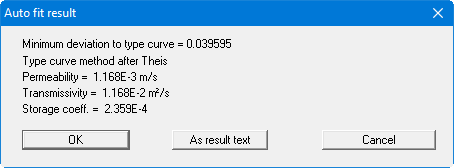

Go to the "Evaluation/Auto fit" menu item to select the automatic method.

The program only requires a short time to determine the displacement factors.

The solution given in Langguth/Voigt is:

• T = 1.1 · 10^-3 m²/s

• S = 2.4 · 10^-4 m²/s.

The minor differences are due to the purely visual evaluation employed by Langguth/Voigt.

If you adopt the result text, it is entered into the "Result text" box in the form.
