GGU-PUMPTEST: Evaluation using "Hand fit"

Go to the "Evaluation/Hand fit" menu item to select the manually method.

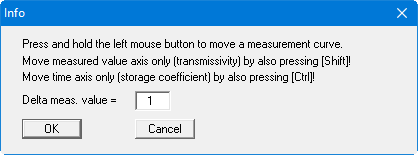

Then click on the curve within the graphic with the left mouse button and hold the button pressed. Now displace the curve until the measured curve and the type curve are congruent.

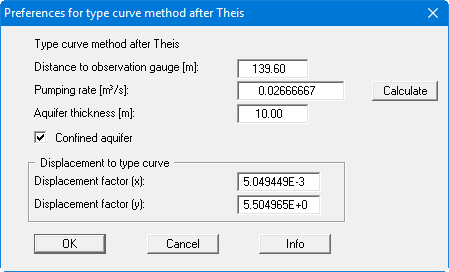

Now go to the "Evaluation/Permeability" menu item.

To check, you can select the menu item "Evaluation/Theis type curve" again.

Because of the displacement of the curve, the displacement factors required for determination of permeability have now been determined.
