GGU-SHRINKAGE: "Table" menu item

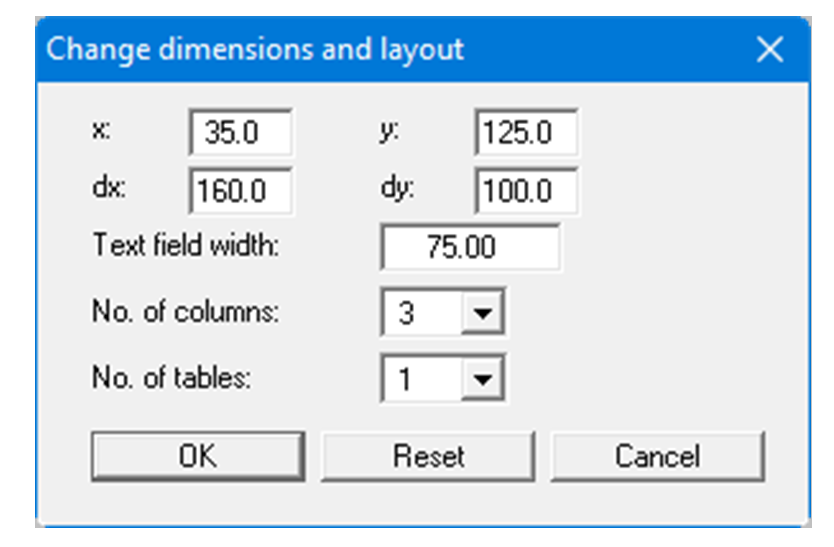

Using this menu item, not only the size and position of the table elements can be varied, but also the structure of the results table: The number of columns to be included in the table can be specified in the dialog box, together with the number of any tables to be created. The overall size of the table is given by "dx" and "dy".

The width of the left table column with the labelling is specified in the "Text field width" input box. The width is given in [mm], the labelling font size is automatically adjusted to the available space. The number of tests (= columns) to be visualised in a results table can be specified using the "No. of columns" drop-down list box. The columns are divided equally across the remaining table width. The font size of the table texts can be edited using the "Graphics preferences/Font size selection" menu item. If there is not enough space in the boxes a line break is first inserted and then the font size automatically adjusted.

The number of rows in a results table and the labelling of the first row can be adapted to suit user-requirements using the menu item "Output preferences/Table texts + allocations".
