GGU-TIMESET: "View output table"/"View diagram" menu items

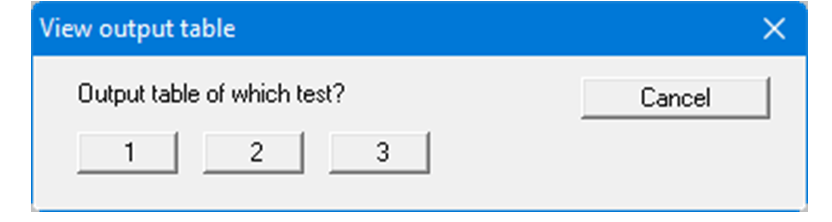

The default screen visualisation is the time-settlement tests graphics. If you go to the "View output table" menu item, the following dialog box opens:

The "1", "2" etc. buttons represent the tests entered. The most important test data can be viewed for every test. If more than 35 measurements are available for the selected test the number must be reduced for the output sheet.

If you are viewing the output table you can navigate between the output tables for the individual tests using the arrow tools in the Smart icon bar. In order to return to the graphical visualisation of the time-settlement tests, click on the now active menu item "View diagram" or simply on the  tool in the Smart icon bar. You can move between the output table and the graphical visualisation using this tool.
