GGU-TRIAXIAL: "Annex numbers" menu item

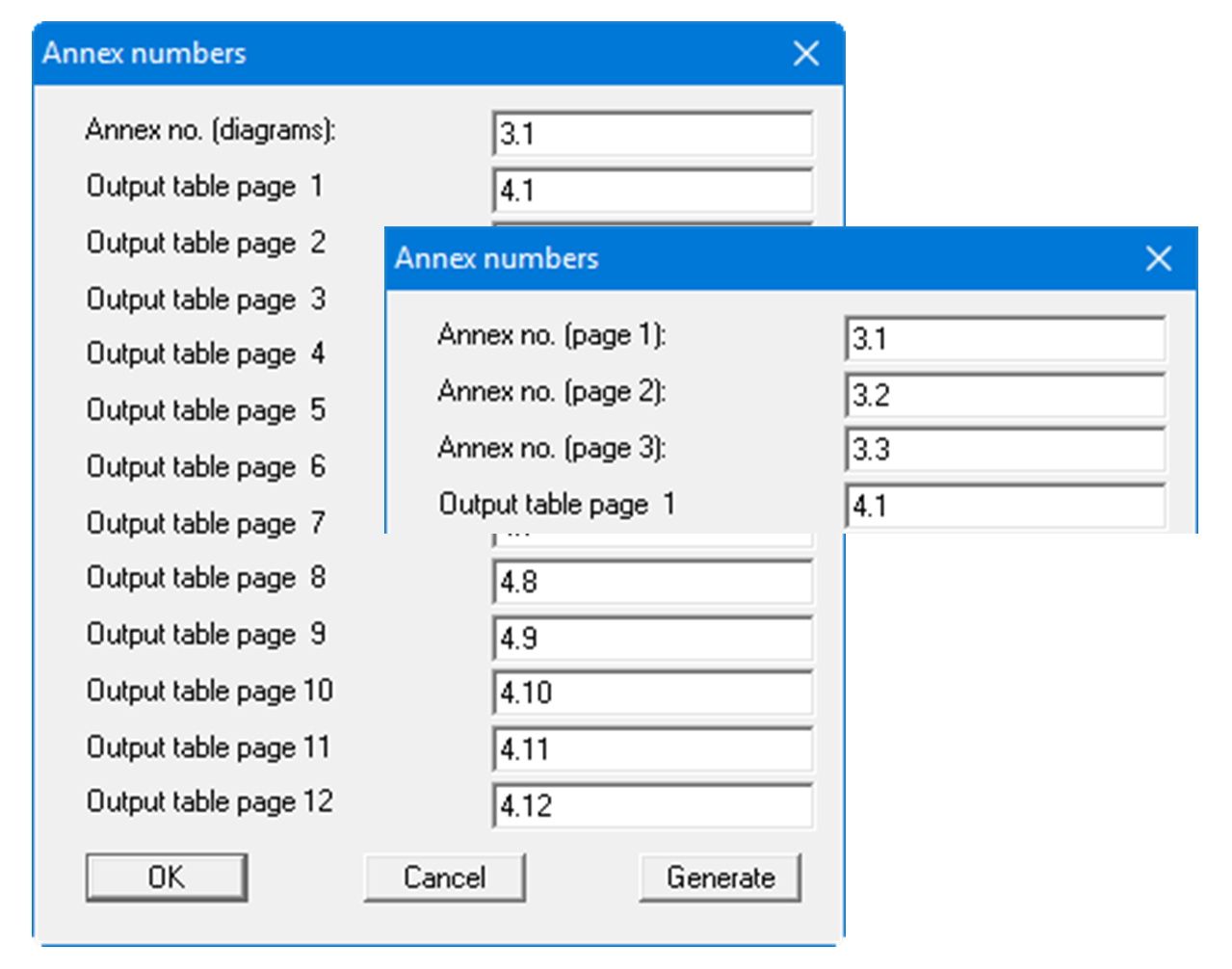

Use this menu item to specify the annex numbers for the output sheets (diagrams and output table). When displaying all the diagrams on one sheet, only the "Annex No. (diagrams)" input box appears in the subsequent dialog box. When outputting the diagrams to several A4 sheets, a separate input box will open for each diagram sheet.

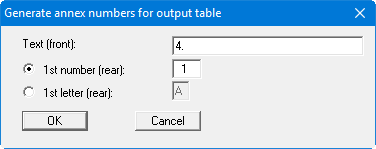

You can manually enter the desired annex numbers for the output tables or have them generated by the program using the "Generate" button. Make the following entries to get the numbering shown above:

Enter the text to appear in front of the automatic numbering in the first input box; this can be a different number to the annex number for the graphics. It is then possible to select between numbering with numerals or a letter sequence. Activate the required command button and enter the first number or letter (in lower or upper case).
