GGU-TRIAXIAL: "Select page" menu item

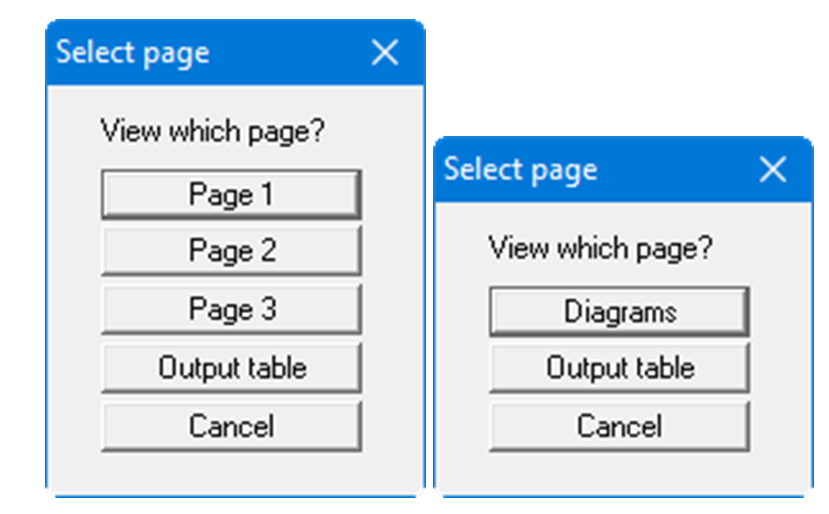

If this menu item is clicked one of the following dialog boxes opens, depending on whether visualisation of all diagrams on one sheet is selected.

The "Page 1", "Page 2", "Page 3" buttons allow the individual test pages to be selected. Depending on the type of test used, different diagrams and tables will be visualised.

After pressing the "Output table" button the result table can be viewed with all the measured data belonging to the corresponding test.

Alternatively, move between diagram and output table visualisation using the and tools in the Smart icon bar.

The diagram headings are shown in the language selected when the program starts. If the language is changed while processing a test the program must therefore be restarted in order to load the diagram headings in the new language.
