GGU-WATER: "No. of tables, columns, etc." menu item

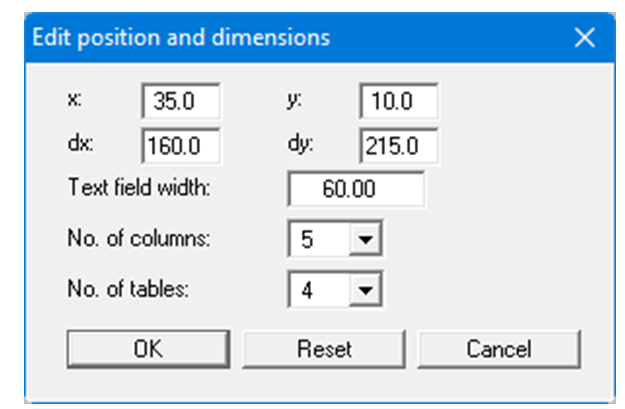

Using this menu item, not only the position and size of the table elements can be varied, but also the structure of the results table: The number of columns to be included in the table can be specified in the dialog box, together with the number of any tables to be created. The overall size of the table is given by "dx" and "dy". The menu item "Output preferences/Table" provides identical options for changing the table appearance.


The width of the left table column with the labelling is specified in the "Text field width" input box. The width is given in [mm], the labelling font size is automatically adjusted to the available space. The number of tests (= columns) to be visualised in a results table can be specified using the "No. of columns" drop-down list box. The columns are divided equally across the remaining table width, the font size of the column headings and test data is also adapted to the available space.

The number of rows in a results table and the labelling of the first row can be adapted to suit user-requirements using the menu item "Output preferences/Table texts + allocations".
