GGU-BORELOG: "Heading and header" menu item

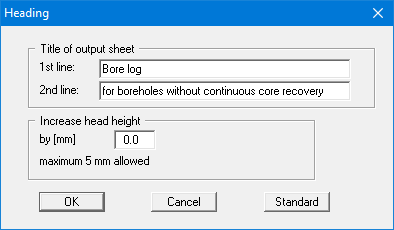

The default format for the DIN 4022 form includes a two-line header. The two form title lines can be modified, depending on whether a bore log is to be created to DIN 4022-1, DIN 4022-2 or DIN 4022-3. The height of the form header can be increased by a maximum of 5 mm in the dialog box’s lower group box.

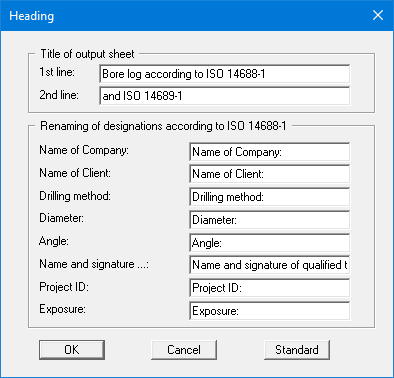

For a bore log to ISO 14688-1 the information on the borehole and the project given in the dialog box are displayed on the form. This menu item also allows modification to the input box designations. Data input is made in the menu item "Edit/Additional data".

../eng/ggu-borelog-horizons-button-input-using-sep-abbrev

If the various bore logs are regularly used, a number of different templates can be created using the appropriate titles and designations and saved to different ".alg" files in "Edit/Save gaphics preferences".
