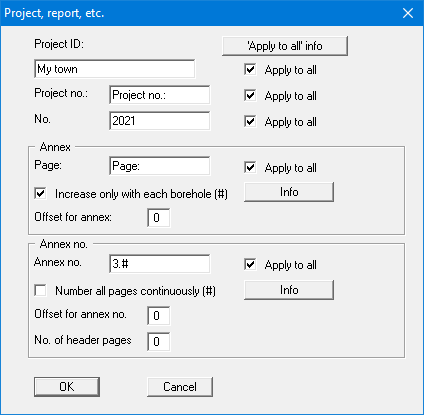

GGU-BORELOG: " Project, report, etc " menu item

If several bore logs are loaded and you would like to edit the project name, the date, the report and/or annex number, then you would normally need to open the "Base data" dialog box for all logs and edit them individually. Using this menu item you can have the same data entered in all logs.

The data are used in all bore logs if the respective "Apply to all" check box is activated. The lines of input ticked here are no longer displayed in the ‘Base data’ dialog box for the individual bore logs.

In the "Annex" and "Annex no." group boxes automatic numbering can be achieved by using the place holders "#" and "%". See the corresponding "Info" boxes for more information.

Some examples will clarify the available options:

The example file contains two bore logs, B 1 und B 2. Each bore log consists of three pages, meaning the file has a total of six pages.

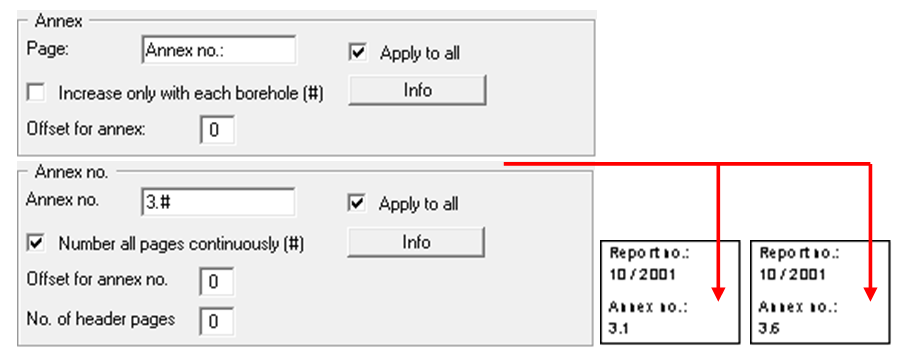

1. The Annex box contains text only: "Annex no.:", which is the same for all annexes. The input for Annex no. is "3.#", continuous page numbering is activated.

Annex numbering begins at 3.1 and continues in sequence to 3.6.

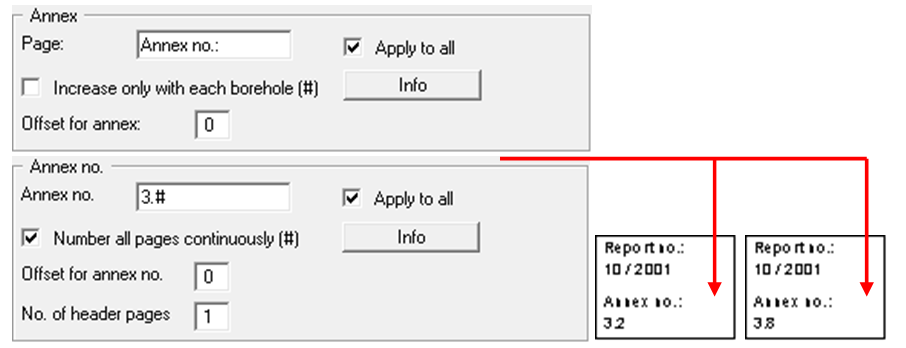

2. The Annex box contains text only: "Annex no.:", which is the same for all annexes. The input for Annex no. is "3.#", continuous page numbering is activated.
   A header page will be added in front of bore logs B 1 and B 2; a "1" is therefore entered for the number of header pages.

Annex numbering begins at 3.2 for bore log B 1, the B 1 header page is Annex 3.1. Numbering for bore log B 2 begins at 3.6 and continues to 3.8, the B 2 header page is Annex 3.5.

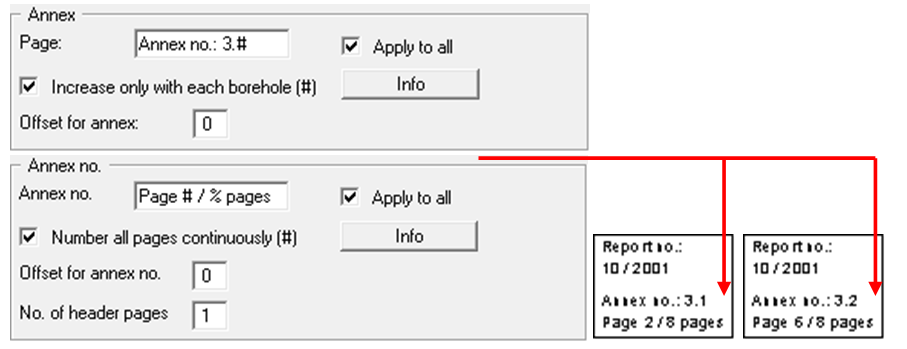

3. Numbering has been entered in Annex, to be increased with each borehole only. The current page number and the total number of pages in Annex 3 are entered in Annex no. Remember that a header page is added in front of each borehole.


The B 1 bore log is annex number 3.1, that of B 2 is 3.2. With a header page per borehole page numbering for borehole B 1 starts on page 2 and on page 6 for borehole B 2. A total page number of 8 then results for Annex 3, including the header pages.
