GGU-CAD: Post-editing lines

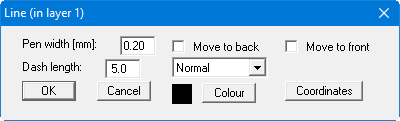

If you go to this menu item and then click a line, for example, the following dialog box opens:

The pen width and colour can be changed and a dash format be allocated to the line. The line is drawn either last or first using the "Move to back" or "Move to front" check boxes. This is particularly practical if there are coloured areas in the drawing and you wish to prevent lines being covered by them.

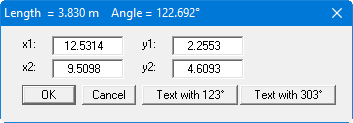

If you click the "Coordinates" button the following dialog box opens:

The line coordinates can be edited here. If you click one of the two "Text with x°" buttons the dialog box closes and the "Text" function is automatically activated. An axis-parallel annotation can now be entered for the line; the program adopts the angle of the line as the default value in the text editor's dialog box.
