GGU-DRAWDOWN: Define section course

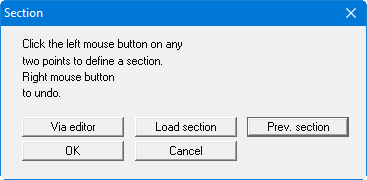

After selecting this menu item a dialog box opens containing a description of the procedure for defining the section then opens:

For this type of evaluation the section course is no longer bound to the drawdown points, but consists of a start and an end point. Using the "Via editor" button you can specify the start and end points using numerical values instead of the mouse. If you have previously saved a section it can be loaded again using "Load section". The "Prev. section" button is only visible if a section has already been defined and loads the section defined immediately prior.

If you click "OK" you define a new section by clicking the start and end points using the mouse. Once the end point is defined a dialog box opens for input of the number of subdivisions. The number of subdivisions defines the number of drawdown points for calculation. The greater the number of drawdown points, the more complex is the section computation; however, at the same time the resolution is increased, assuming sufficient points have been defined.
