GGU-FOOTING: Define footing (Example 3)

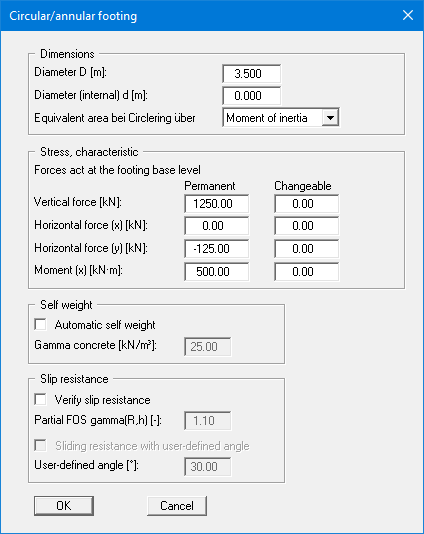

Select the menu item "Edit/Footing details".

Enter the diameter shown for the circular footing. The analysis is performed on an equivalent area for an annular footing (see "Theoretical principles: Theoretical principles for circle/annulus"). According to the partial safety factor concept, you can define differing stresses for permanent and changeable loads.
