GGU-RETAIN: "Grouting points analysis (U sections)" menu item

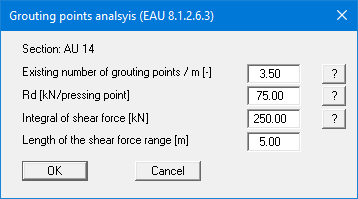

Using this menu item, you can have the grouting points verified for a selected section. You can use the following dialog box to examine various settings for the selected section.

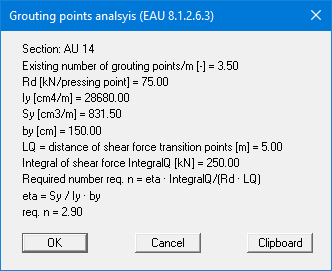

You will then receive the following verification, for example, which you can transfer to your report via the Windows clipboard ("Clipboard" button).


After clicking on "OK", you can verify the grouting points for another section or for the same section with different specifications. Click "Cancel" to exit the menu item.
