GGU-RETAIN: "Retaining wall diagram" menu item

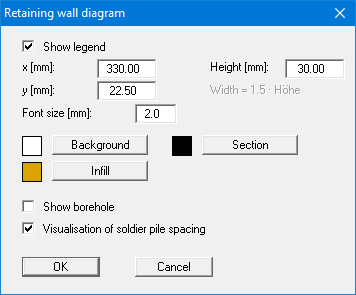

A legend containing a small sketch of the retaining wall employed is displayed on the screen. Using this menu item you can alter the type of presentation or turn off the legend completely. The following dialog box opens for a soldier pile wall, for example.

If you edit the font sizes you may have to alter the size of the legend to suit, otherwise the dimensions in the legend may no longer be visible.
