GGU-SETTLE: "Edit nodes (via table)" menu item

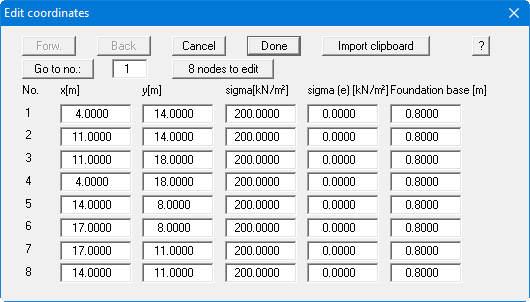

Using this menu item you can edit the coordinates of the existing foundation nodes or enter new ones. After clicking on it the following dialog box appears:

If the current number of nodes needs to be edited, click the "x nodes to edit" button and enter the new number of nodes. It also possible to delete nodes by reducing the number. Any existing foundation mesh is also deleted. Navigate through the table using "Forw." and "Back". Each new foundation node is initially assigned the default values for stress, excavation unloading and foundation base (see menu item "Triangular foundations/Default values"). The data can then be edited in the table.

If you already have the coordinates and additional data available in a text editor or in Excel, they can be imported from the Windows clipboard using the corresponding button. Information on this is provided via the "?" button.
