GGU-SETTLE: "Edit nodes (via table)" menu item

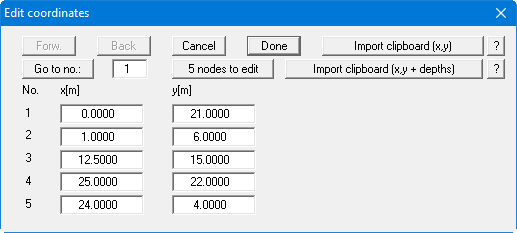

Using this menu item you can edit the coordinates of the existing nodes or enter new ones. After clicking on it the following dialog box appears:

If the current number of nodes needs to be edited, click the "x nodes to edit" button and enter the new number of nodes. It is also possible to delete nodes in this way. Navigate through the table using "Forw." and "Back". Each new constrained modulus profile is assigned the default depths defined in menu item "Soils/Default layer depths".

If you already have the coordinates and/or layer depths available in a text editor or in Excel, they can be imported from the Windows clipboard using the two corresponding buttons. Information on this is provided via the two "?" buttons. By pressing the lower button, "Import clipboard (x,y + depths)", the program anticipates 2 columns for x and y and then as many columns as you have defined soil strata.
