GGU-SETTLE: "Test vibrodisplacement compaction" menu item

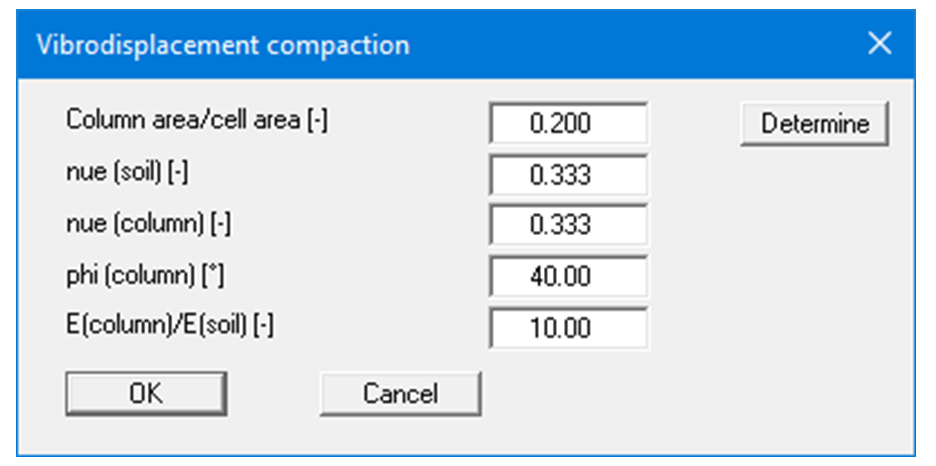

The improvement brought about by vibrodisplacement compaction can be tested by varying the soil properties using this menu item.

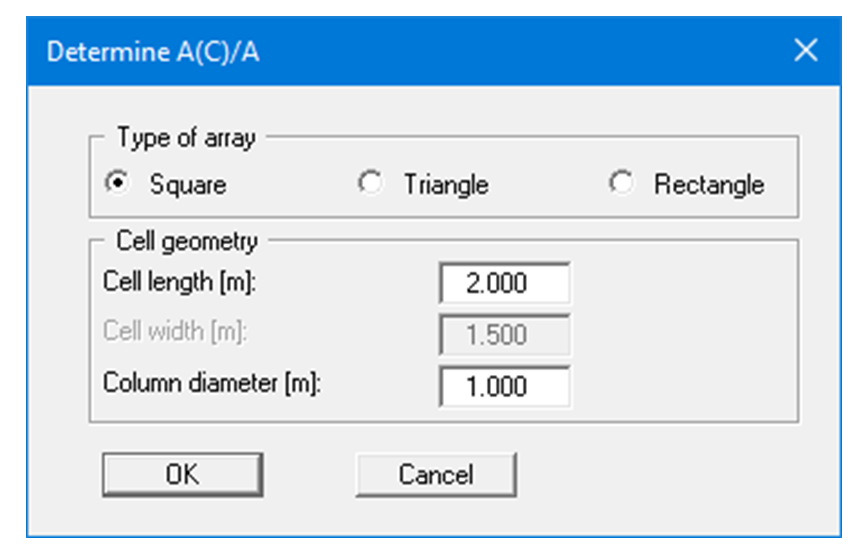

Using the "Determine" button the column/cell area ratio "A(C)/A" can be determined using a variety of array procedures.

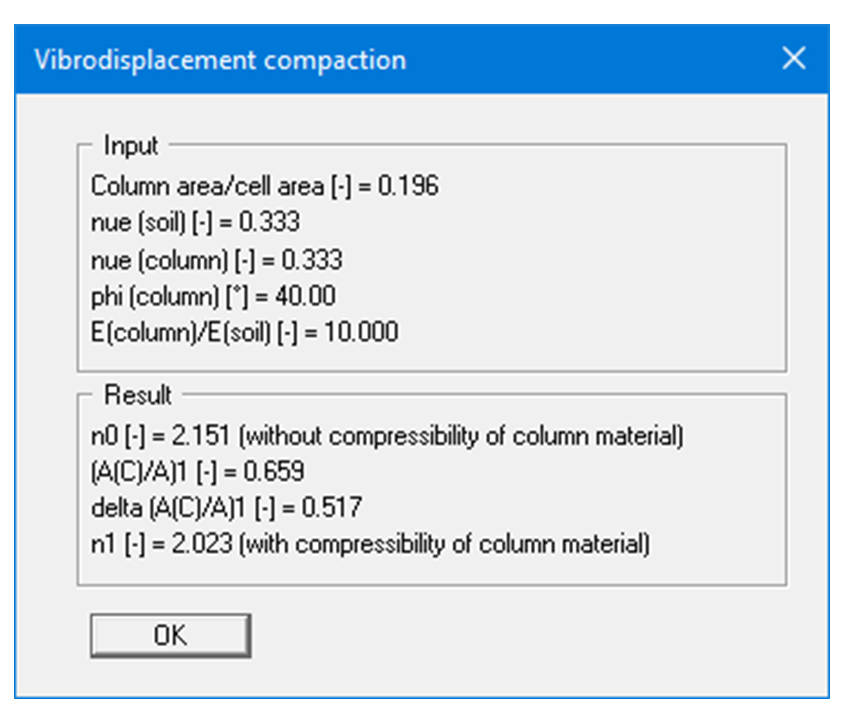

After the determination, the calculated value A(C)/A is displayed in an info box. If you want to accept this value, click on "Yes". After confirming the values entered in the previous dialog box with "OK", the results are displayed in a message box:

Click "Cancel" in the above dialog box to end the menu item.
