GGU-VIBRATION: "General legend" menu item

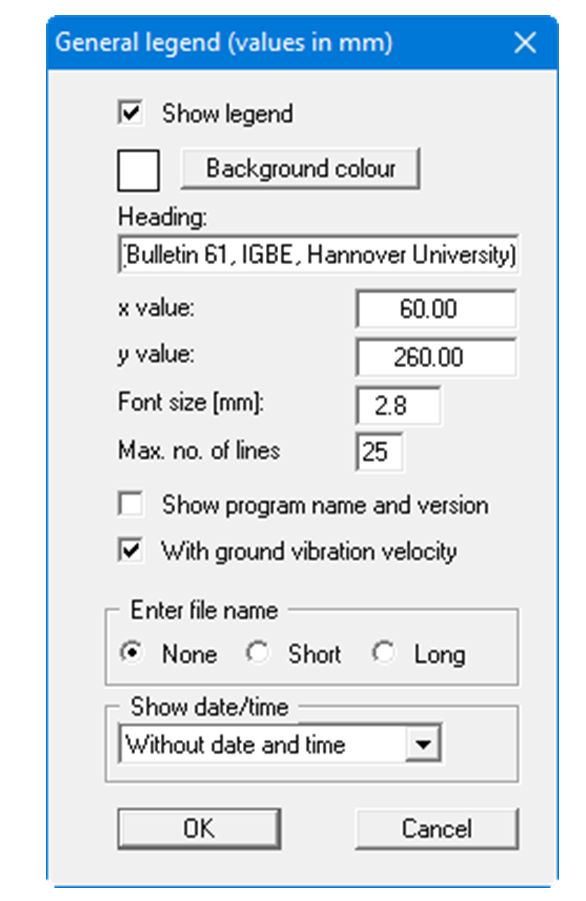

After selecting this menu item a dialog box opens allowing graphics preferences to be selected for displaying a legend containing the input data and the analysis results. The legend is activated by the "Show legend" check box. In addition to the input in the dialog box the legend also contains the project identification, if it was entered using the corresponding menu item "Edit/Project identification". The vibration generating equipment is also filled in automatically. The display of the ground vibration velocity can be activated via the corresponding check box.


You can define and edit the position of the legend using the values "x" and "y". You control the size of the legend using "Font size" and "Max. no. of lines"; where necessary, several columns are used. The legend background can also be given a colour fill.

The fastest way to modify the position of the legend is to press the [F11] function key and then to pull the legend to the new position with the left mouse button pressed.

In the general legend you can, if wished, display information on the program and on the current file. By activating the "Short" or "Long" option buttons the current file name can be shown in the legend, either with or without the path. Date and/or time can be displayed, too.
